T-shirt Bag Making Machine

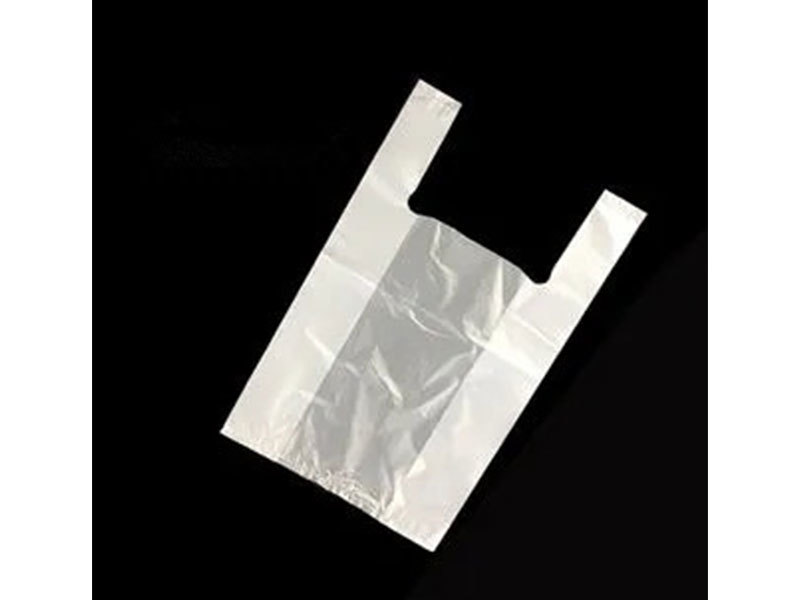

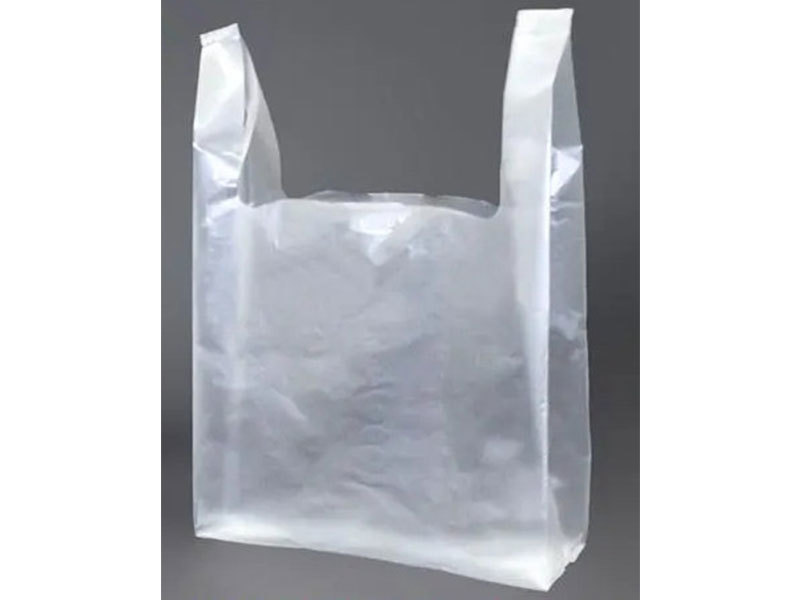

Automatic high-speed bag making machine with HDPE, LDPE tube film as raw materials can produce printing, natural color, vest bag, using PLC control, double servo (stepping) motor fixed length, LCD touch screen real-time display, from the feeding, sealing, cutting, punching, conveying one-time completion, high degree of automation, good economic benefits.
Category:
Product Description
Keywords:
Automatic high-speed bag making machine with HDPE, LDPE tube film as raw materials can produce printing, natural color, vest bag, using PLC control, double servo (stepping) motor fixed length, LCD touch screen real-time display, from the feeding, sealing, cutting, punching, conveying one-time completion, high degree of automation, good economic benefits.
|
Model |
SX-400*2 |
SX-450*2 |
SX-500*2 |
|
Max. Bag-making width |
360mm*2 |
410mm*2 |
450mm*2 |
|
Producing length |
660mm |
680mm |
750mm |
|
Produceing speed |
100-240*2pcs/min |
100-240*2pcs/min |
100-240*2pcs/min |
|
Thickness of film |
0.008-0.035 |
0.008-0.035 |
0.008-0.035 |
|
Main motor |
1.5kw |
1.5kw |
1.5kw |
|
Main power |
8kw |
10kw |
12kw |
|
Max dia for unwinding roller |
360mm*2 |
410mm*2 |
450mm*2 |
|
Machine weight |
2000kg |
21000kg |
2200kg |
|
Overall dimension (L×W×H) |
7.0*1.6*1.7m |
7.0*1.7*1.7m |
7.0*1.8*1.7m |
